Rotary convection oven TSR24 CP 80×120

The TSR24 CP 80×120 oven is designed to deliver maximum productivity in large bakeries and food industries. With a capacity of up to 36 trays (80×120 cm or 2×60×80 cm), it features a rotary system and forced-air ventilation to ensure even baking across the entire surface. A powerhouse of performance, space, and reliability.

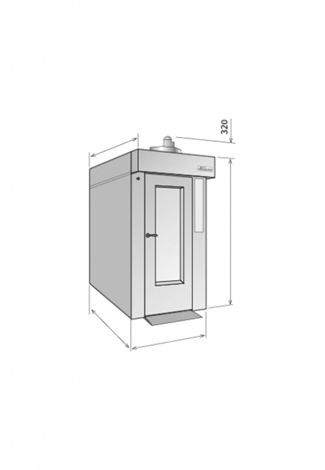

📐 External dimensions

2300 × 1780 × 2610 + 370 mm

📦 Capacity and baking surface

Trays: 18 – 36
Tray dimensions: 80×120 cm / 2×60×80 cm
Baking surface: 17.30 m²

⚙️ Technical specifications

Heating element power: 71 kW
Burner power: 3.5 kW
Thermal power: 80,000 Kcal/h
Weight: 1800 Kg
